• M01-ARB26
  • M01-ARB26

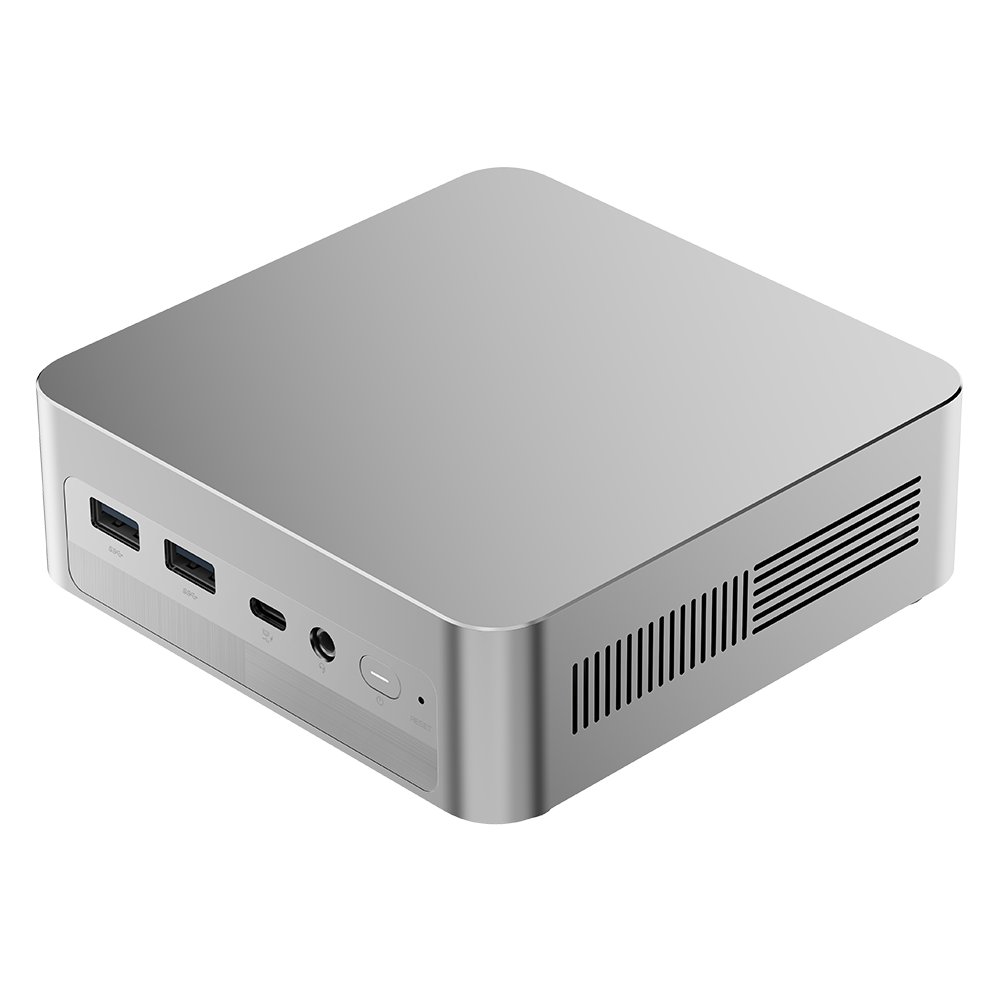

    AMD R7  SSD up to 2TB with 3USB Support Windows 11
    Product   FormMini PC
    Dimensions128.4*128.4*40.5mm
    WeightTBD
    MaterialMetal   + Plastic
    Surface   processTBD
    Standard   ConfigurationType   C 100W Power adapter


    • 0.00
      0.00
Product Description
AMD R7  SSD up to 2TB with 3USB Support Windows 11
Product   FormMini PC
Dimensions128.4*128.4*40.5mm
WeightTBD
MaterialMetal   + Plastic
Surface   processTBD
Standard   ConfigurationType   C 100W Power adapter



Hardware   Configuration
 Type Descriptions
ProcessorCPUAMD   Ryzen™ 7 8845HS
GPUAMD   Radeon™ 780M
MemoryRAM2   x SO DIMM slot,up to 64GB DDR5 5600MT/s
ROM1   x SSD M.2 NVMe 2280 KEY M PCIe 4.0 x4 slot ,up to 2TB                   1 x SSD M.2 NVMe 2280 KEY   M PCIe 4.0 x1 slot ,up to 2TB

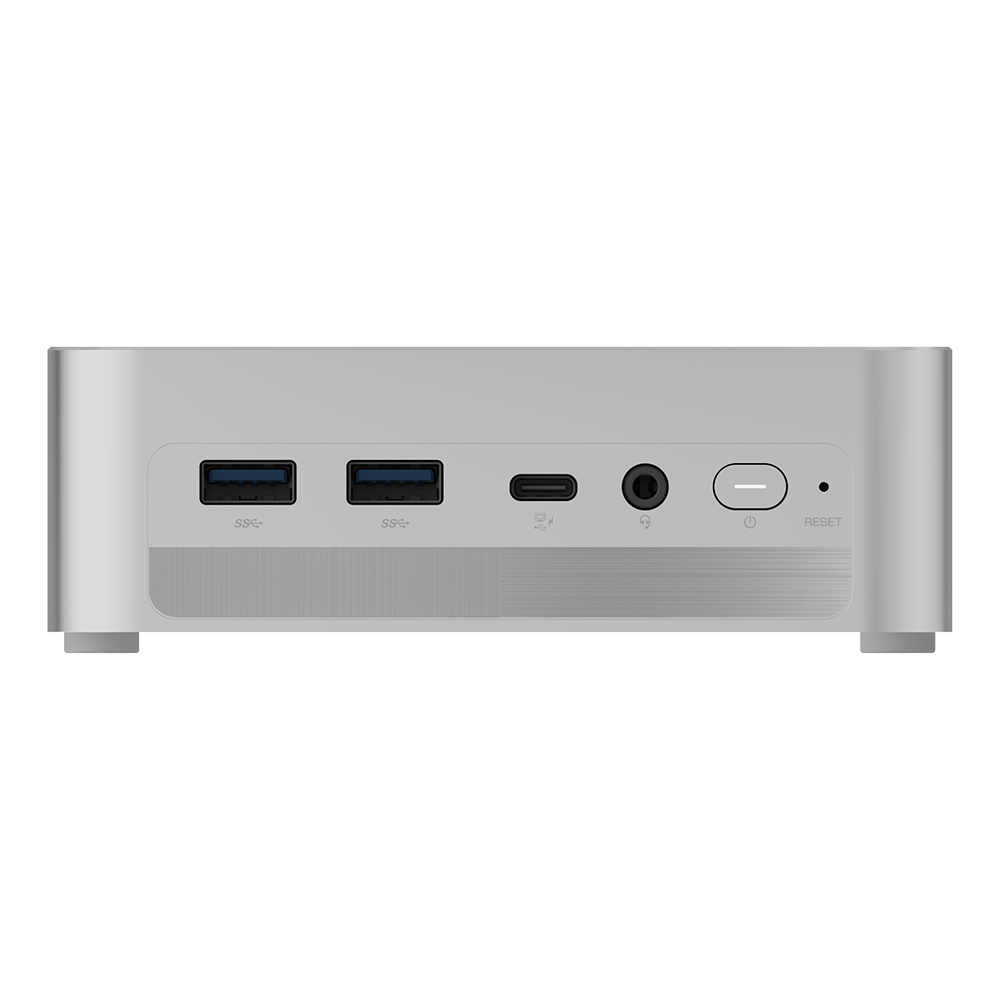

I/OUSB   interface2   x USB 3.2 Gen2 10Gbps Type-A(Front)
Type C1 x Type-C Full function (USB3.2 Gen2 10Gbps+DP1.4 +PD) or 1 x Type-C USB 2.0 data only (Front)
Power Button1 x Power Button,with LED (Front)
Headphone jack1   x 3.5mm Combo Jack(Front)

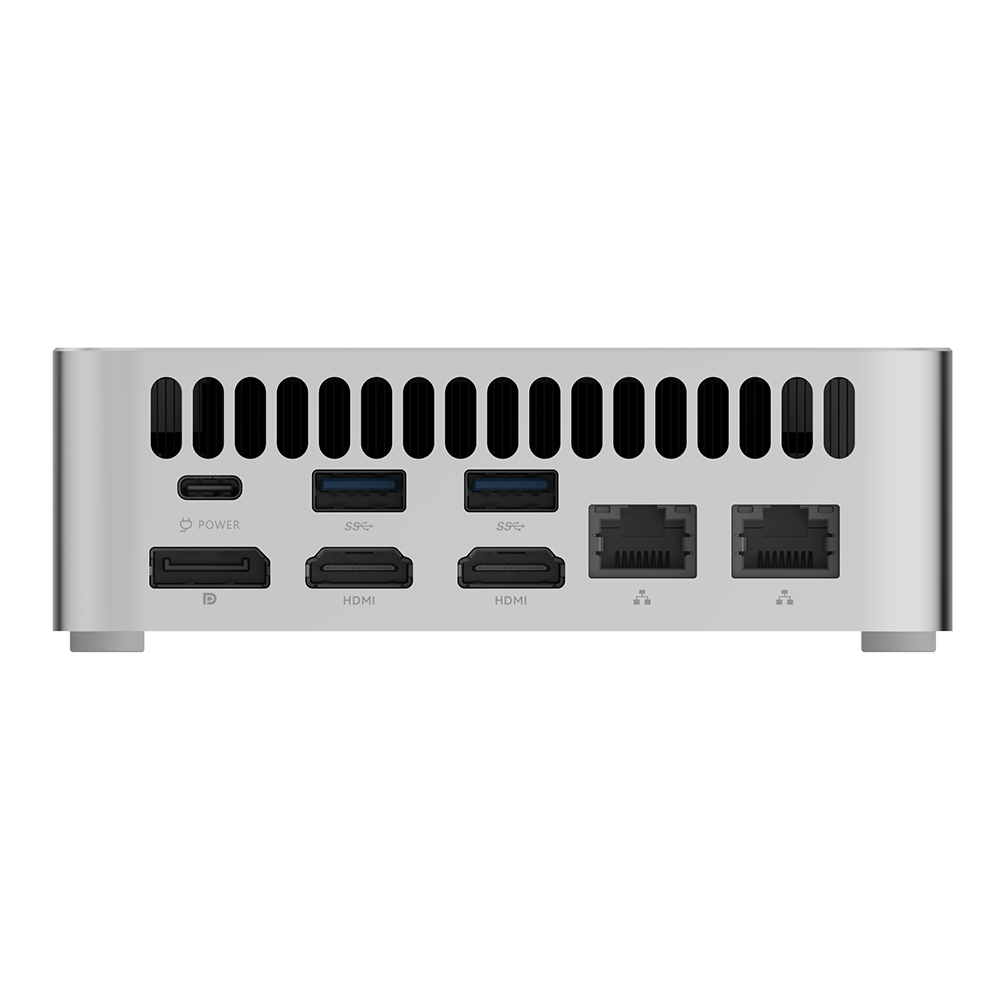

Power connector1 x Type C power   connector(Rear)
HDMI interface2   x HDMI 2.0 Type A(Rear)
DP    interface1 x DP 1.4 (Rear)
USB 2.02   x USB2.0 Type-A(Rear)
RJ451   x RJ45 1000M Ethernet(RTL8111K,co lay RTL8125BG-CG 2.5G LAN)(Rear)                                                                                               1 x RJ45 1000M Ethernet(RTL8111H)(Rear)
WIFI1   x M.2 2230 KEY E(PCIe+USB)
Internal   header
1 x GPIO pin   controller

1 x 4 pin CPU Fan   with SMART FAN controller

1 x 4 pin System Fan   with SMART FAN controller(on SSD side)

1 x 4 pin USB2.0   controller  1 x 5 pin USB2.0 controller

1 x RTC pin   controller

1 x FPC controller
  Software Configuration
 TypeDescriptions
Operating SystemOperating   system versionWindows   11 Pro 64-bit
    Windows 11 Home 64-bit
TPMModuleF-TPM
  features
 TypeDescriptions
Heat-dissipation   Module/55W heatsink
Certificate/CE/FCC/CCC/Rosh
Accessories/VESA mount
Running scoresoftwareTDB
other
Auto power on,Wake on   lan,PXE Boot
